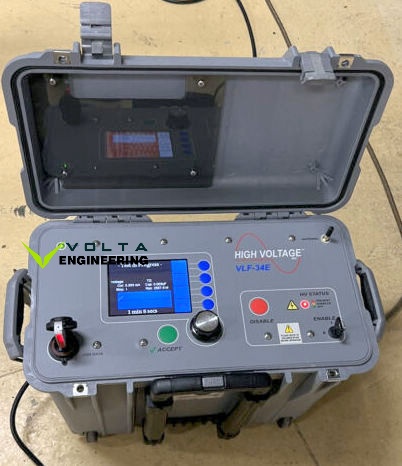

Used HVI VLF 34E AC Hipot Tester


Specifications :

Input Voltage: 90 Vac – 265 Vac, 50 Hz/60Hz, 5A max.
HV Output: 0-34 kVac peak/0-24 kVac rms - Sinusoidal, DC: +/- 34 kV, Square wave: 34 kV, Sheath Tester
Duty: Continuous
Frequency: 0.1 Hz to 0.01 Hz
Load Rating: 0.5 mF @ 0.1 Hz @ 34 kV, 1.0 mF @ 0.05 Hz @ 34 kV, 5.0 mF @ 0.01 Hz @ 34 kV
Metering: Voltage kV peak or RMS Current mA peak or RMS
Calculated: Capacitance, Resistance, Flashover voltage, Time to Failure
Case: Hard “Pelican” type case with extendable handle and wheels
Lead Outputs: HV lead: 20’ RG8/U, Ground 20’ #2
Fault: Smart Fault Management or shutdown on Fault
Reports: Test Records stored in non-volatile memory or via USB memory stick
PC Interface: USB, xbee(r) wireless, RS-232/422
PC Software: Remote Control & Test Reports

Package Included:

• 1x Used HVI VLF-34E Very Low Frequency AC Hipot Tester

• Power cable

• High-voltage output lead and return cable

• Grounding cable

• External interlock jumper

• User manual (printed or PDF)

• Factory calibration certificate (if available)

• Rugged transport case or cart-mounted enclosure

• Optional software or data logging interface (if included)
